Setting up Your Ruckus Cloud Integration

Phil Williams

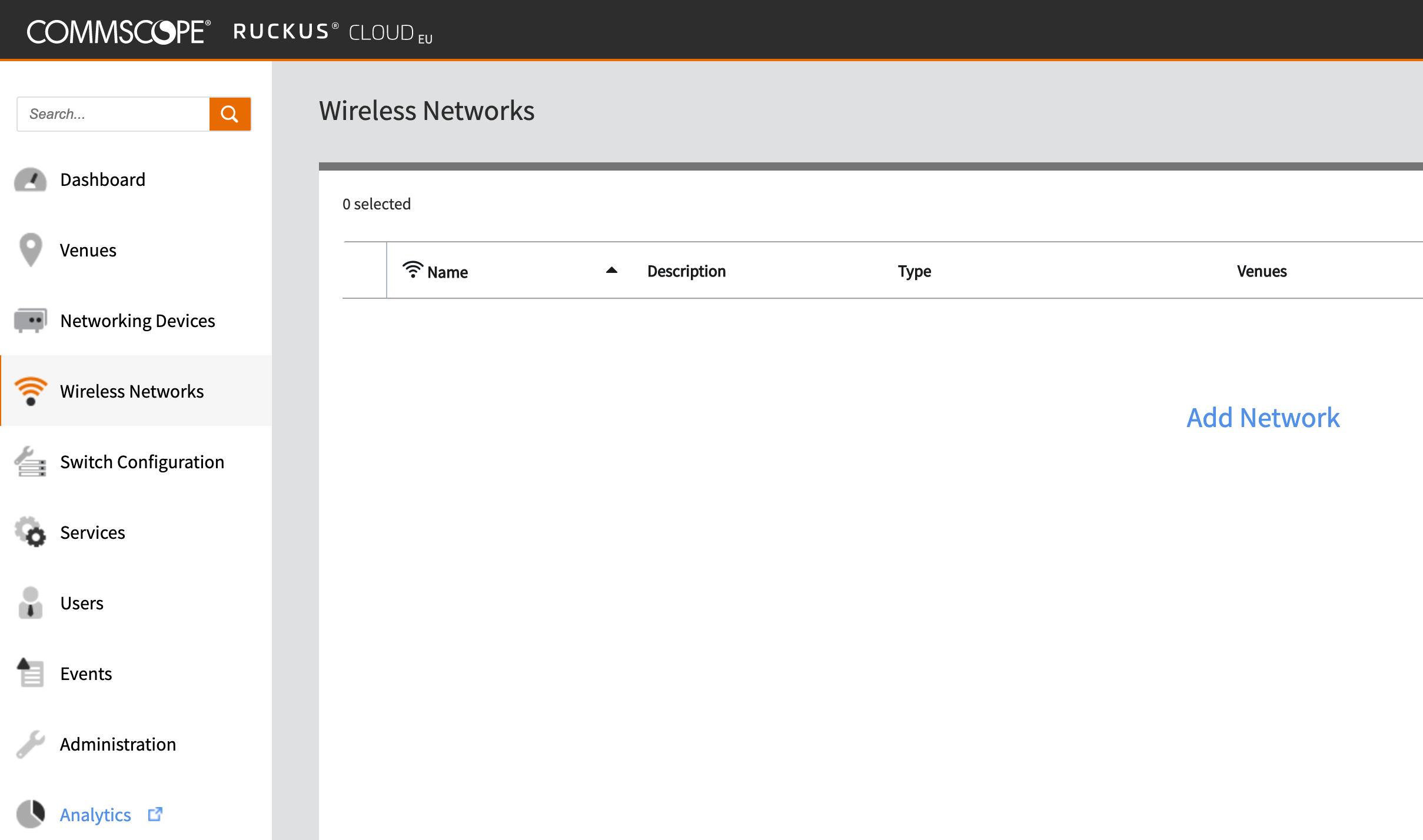

  1. Login to your Ruckus Cloud and navigate to the 'Wireless Networks' section. Here, choose to edit or create a new network to be your Stampede guest WiFi.

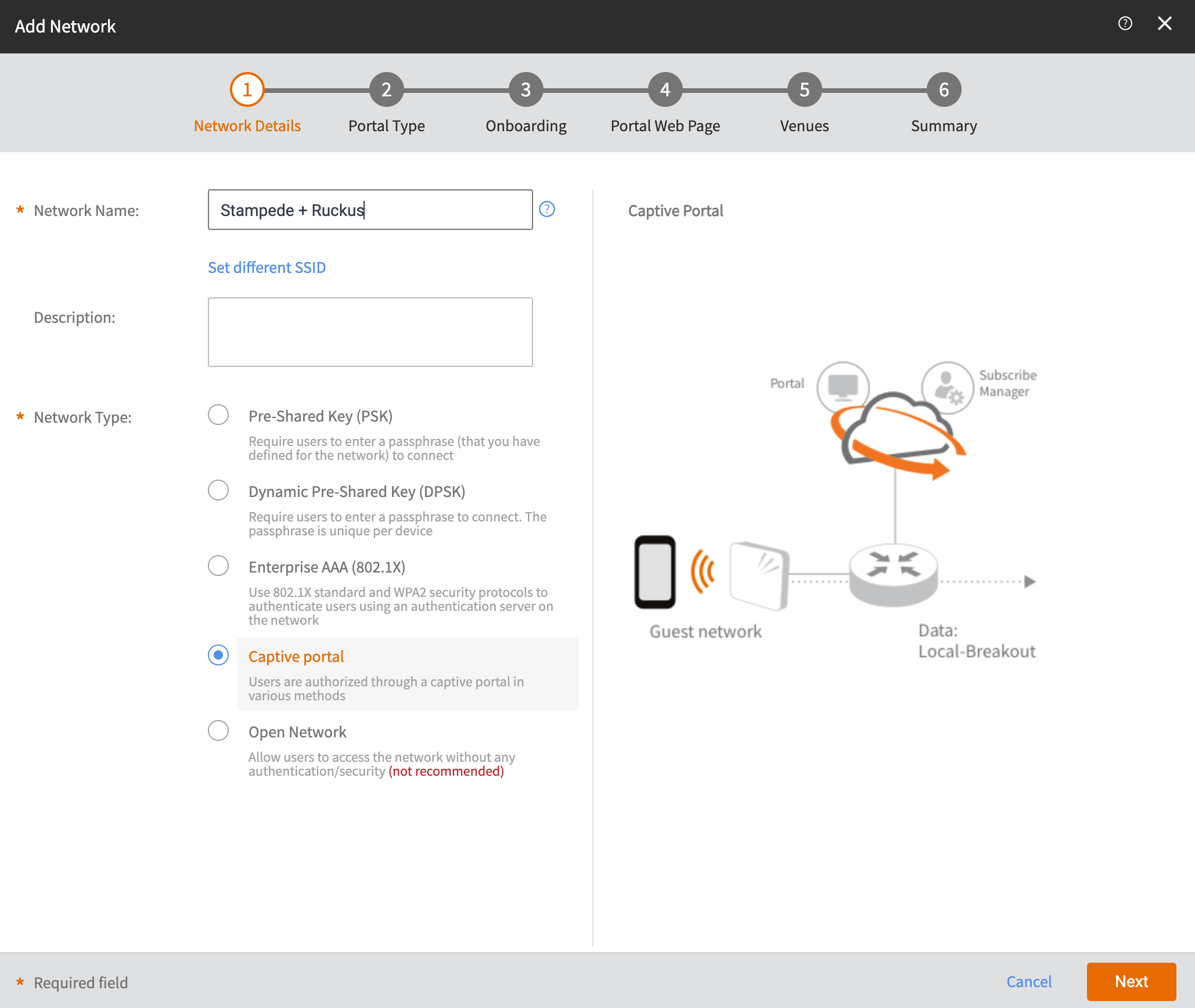

  2. This will open up an SSID creation wizard. In the first section choose the network name and set the network type to 'captive portal'.

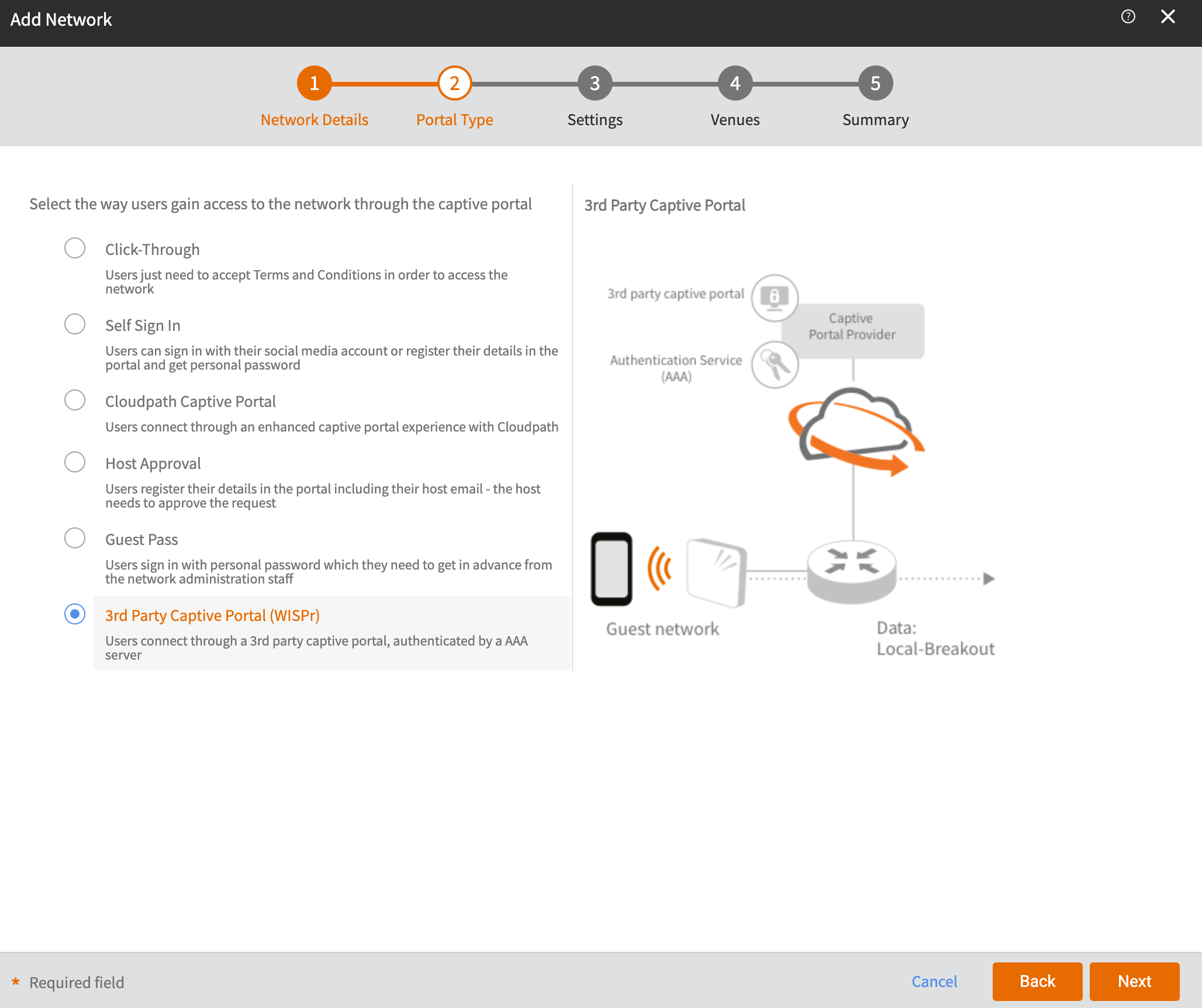

  3. Next, set the portal type to '3rd Party Captive Portal (WISPr)'.

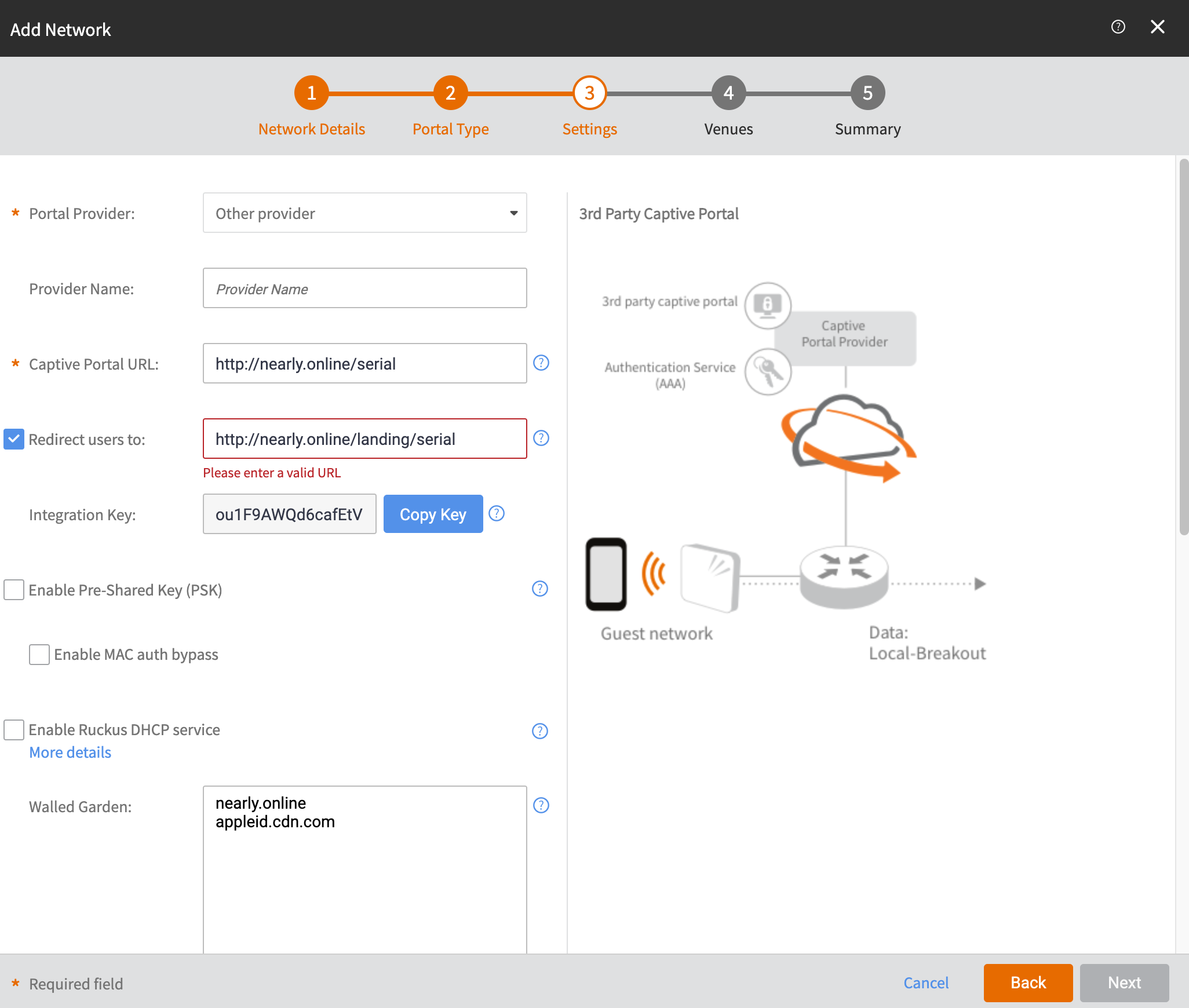

  4. In the next section apply the following details

    Portal Provider: Other provider

    Captive Portal URL: http://wifi.stampede.ai/*serial*

    Redirect Users to: https://wifi.stampede.ai/*serial*/landing

    Walled Garden:

    nearly.online

    appleid.apple.com

    appleid.cdn-apple.com

    facebook.com

    facebook.net

    fbcdn.net

    akamaihd.net

    connect.facebook.net

    akamai.net

    tfbnw.net

    Authentication Service

    Secondary server: enabled

    IP 1: 52.211.166.55

    Port: 1812

    Accounting port: 1813

    Shared secret: bxsecret

    IP 2: 52.16.191.119

    Port: 1812

    Accounting port: 1813

    Shared secret: bxsecret

  5. Hit next, apply to the correct venue and verify the settings are correct before saving. Once done you will be up and running!
