This setup guide is intended to help you connect your DrayTek router to the Stampede captive portal using Hotspot Web Portal and RADIUS authentication. These instructions offer general guidance only and may differ depending on your router model, firmware version, and network layout.
To ensure the correct setup:
- Please consult your IT provider or network engineer before adjusting router settings.
- Follow DrayTek’s official documentation for the most accurate and hardware-specific configuration steps.
Use this Stampede guide alongside DrayTek’s own resources to ensure a smooth installation.
If you need support with your Stampede configuration or account access, you can reach us at support@stampede.ai.
If you are unable to access Stampede, please contact support@stampede.ai or coordinate with your designated admin to get access.
Go to Stampede
Set-up integration on Stampede

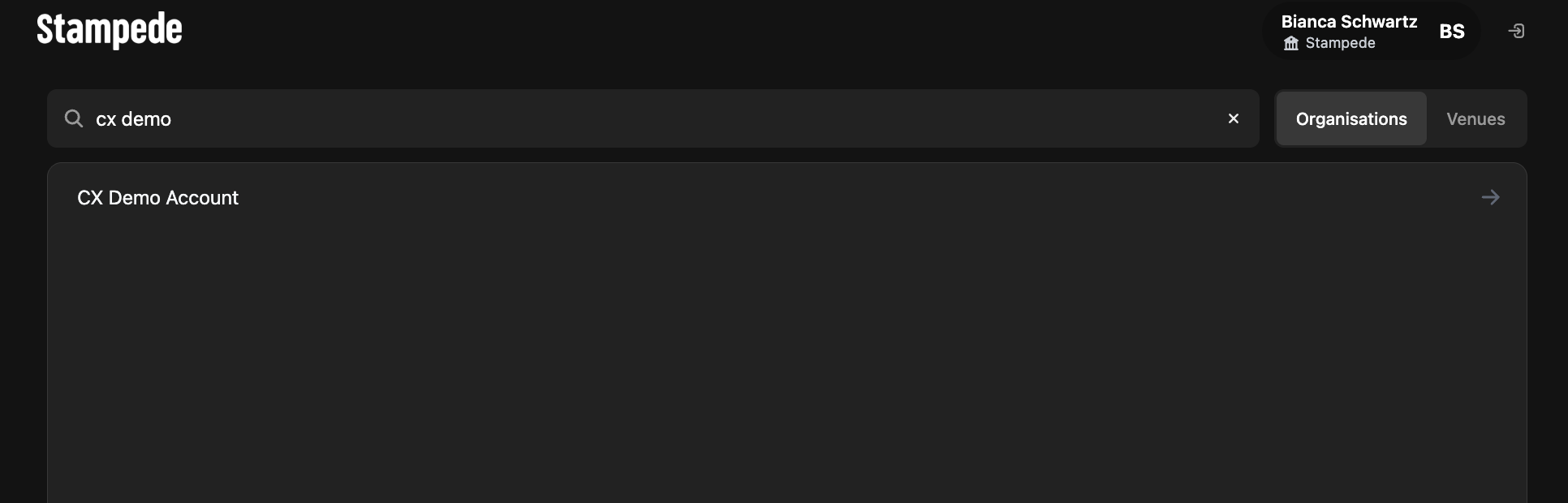

- Log into Stampede at product.stampede.ai.
-

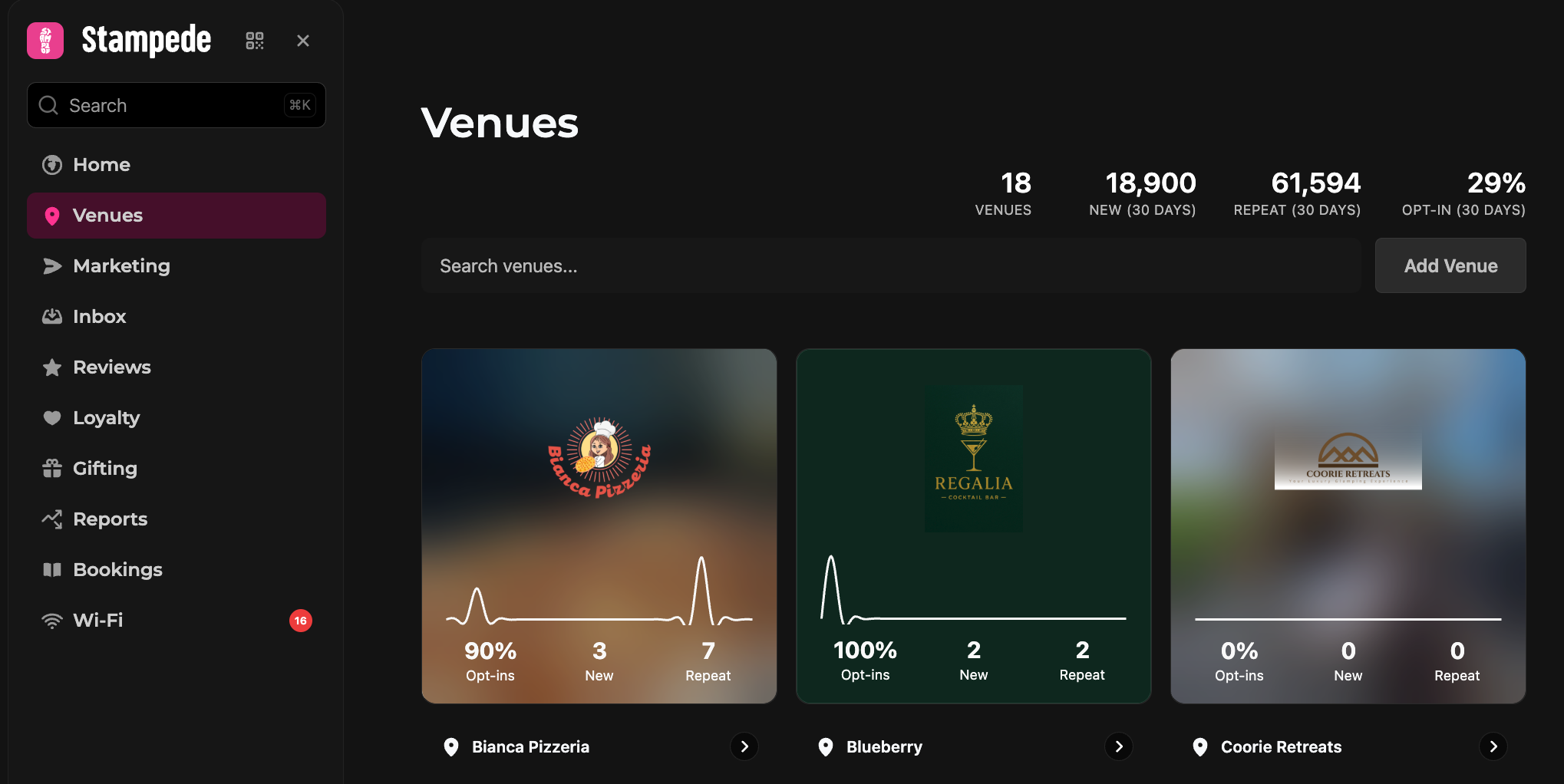

Go to Venues and select the venue you wish to configure.
-

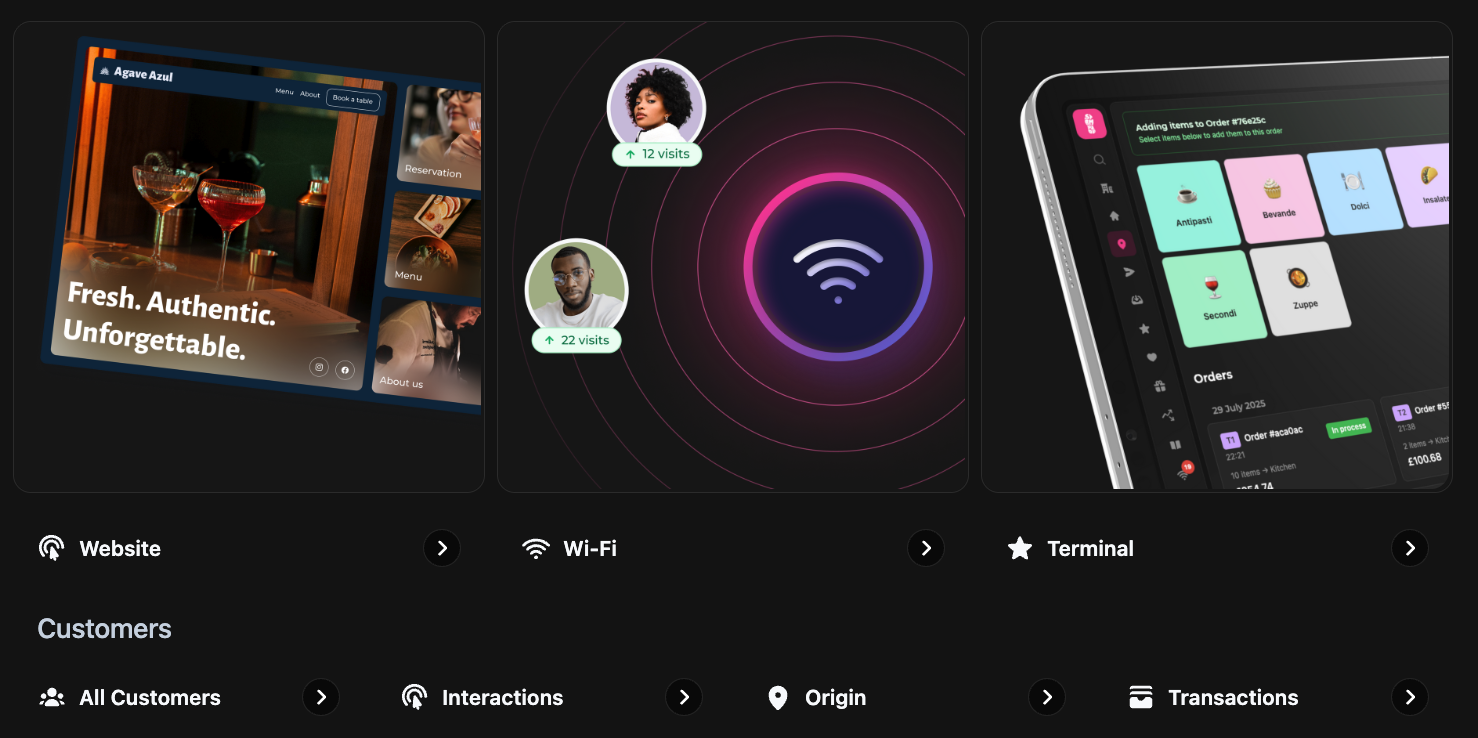

Scroll down and selected Wi-Fi icon.
-

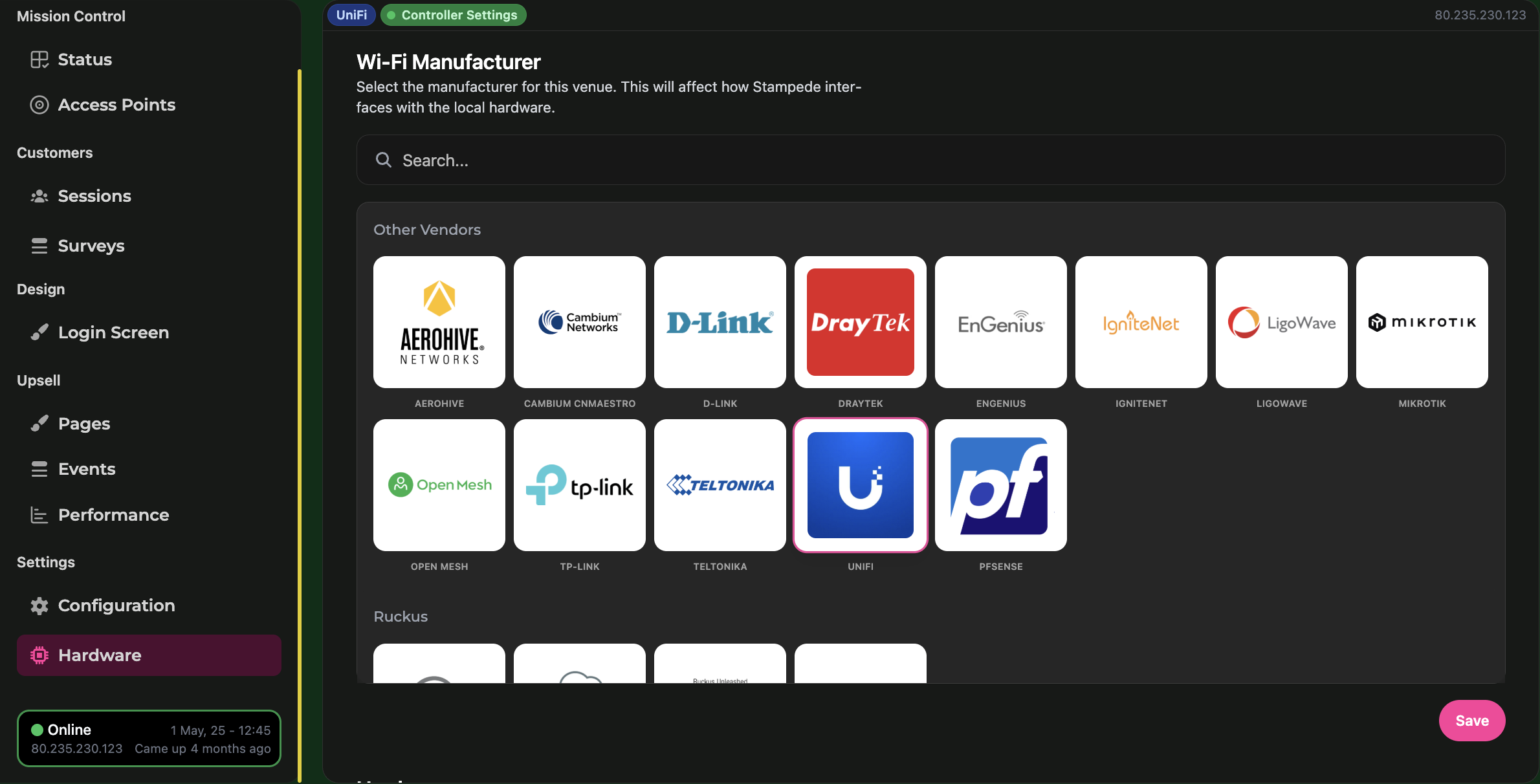

Scroll down to Hardware and select hardware in the "Other Vendors" option
Go to Draytek router

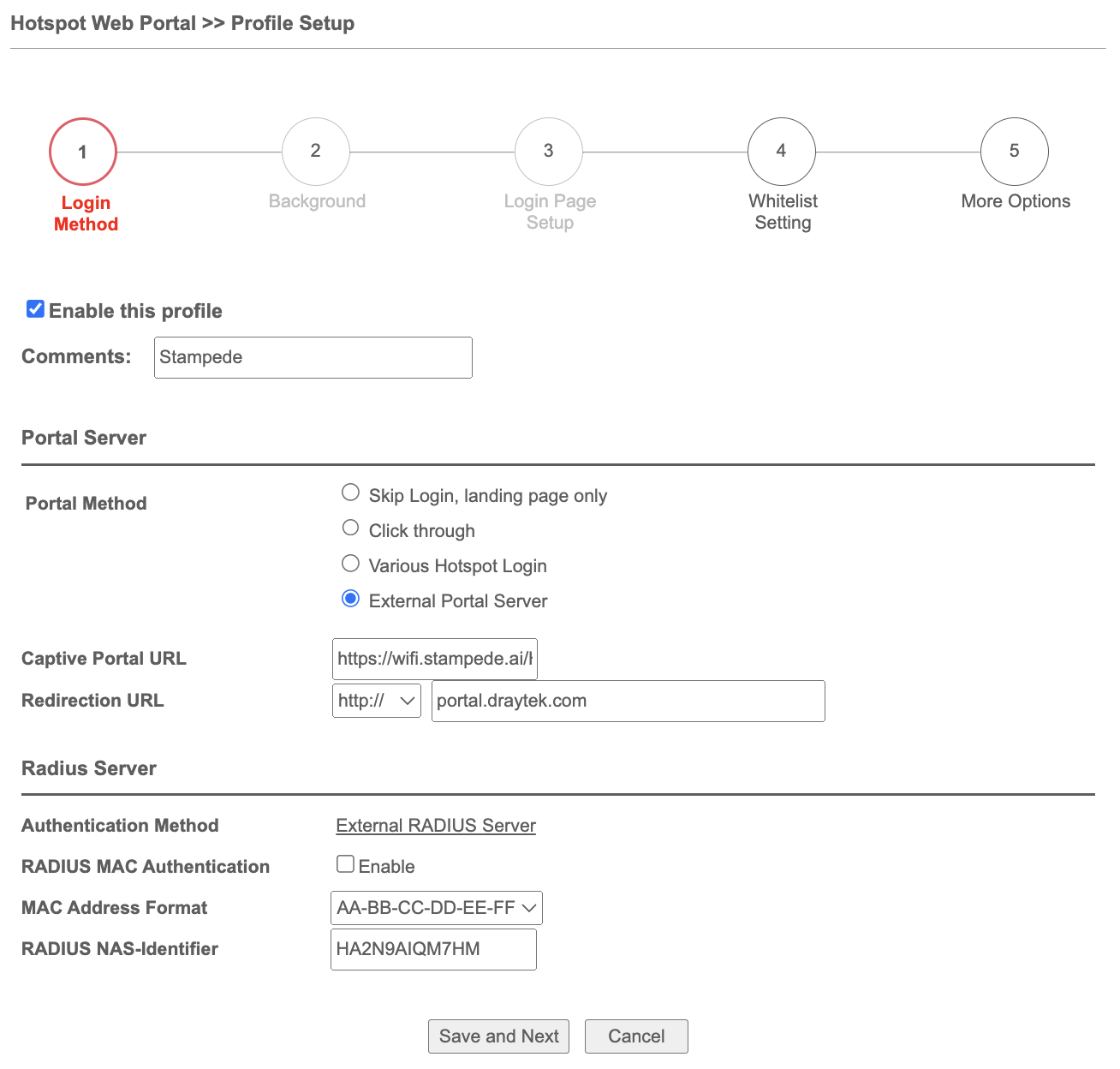

Log in to your Draytek router and navigate to Hotspot Web Portal Profile Setup. Click an available index to create the profile.
-
Firstly enable the profile with the check box. Apply the following settings:
Portal Method: External Portal Server
Captive Portal URL: https://wifi.stampede.ai/*serial*
(You can find the serial by going to the product, into the hardware section. Once the vendor type is set to Draytek, you will see under the AAA RADIUS settings, the NAS ID. This is your serial)
Redirection URL: http://portal.draytek.com
Mac Address Format: "AA-BB-CC-DD-EE-FF"
RADIUS NAS-Identifier: *serial*
-

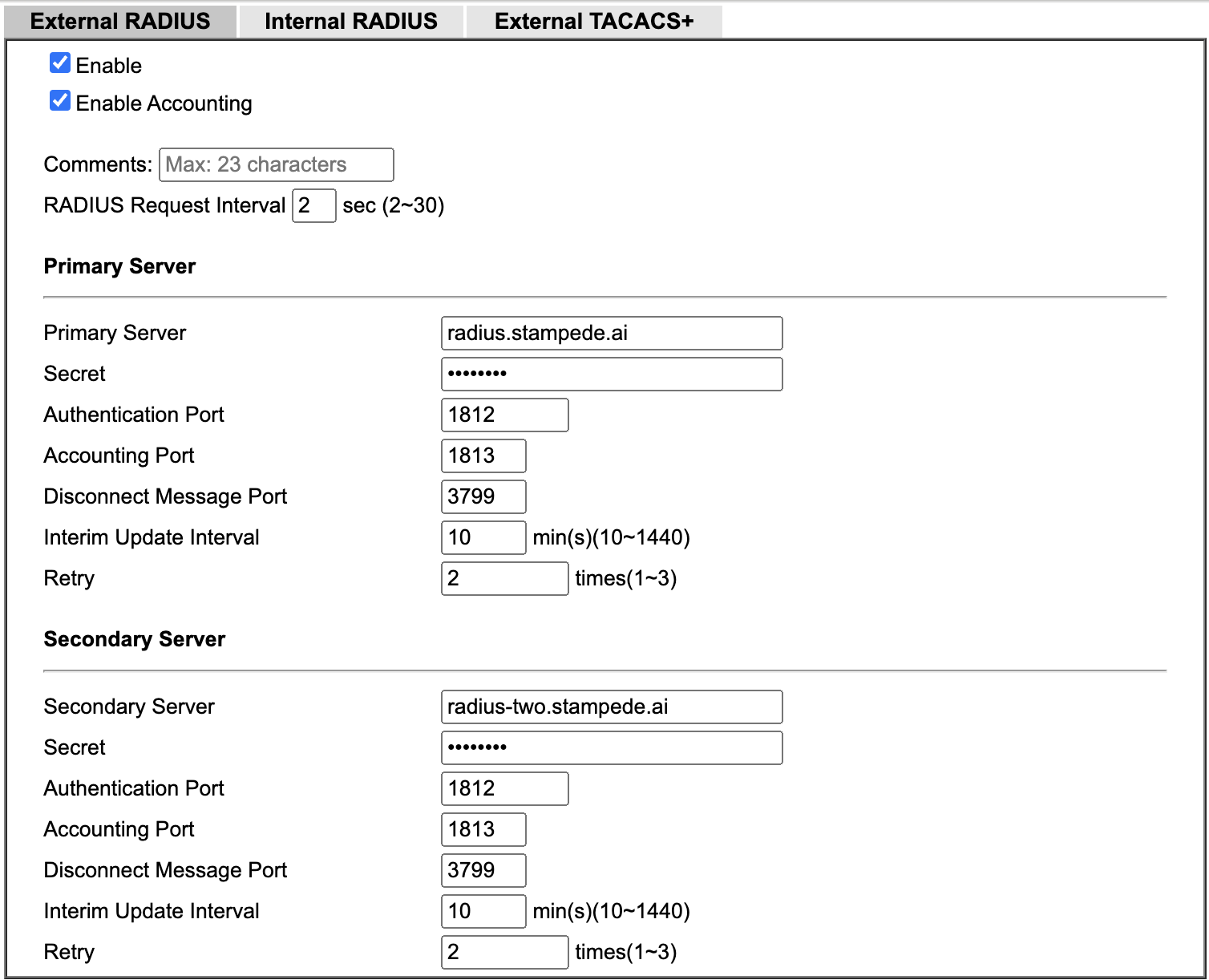

Enable both external RADIUS and Accounting and enter our RADIUS servers, and follow the details below:
Both RADIUS secrets are bxsecret
All other settings are left as standard.
-

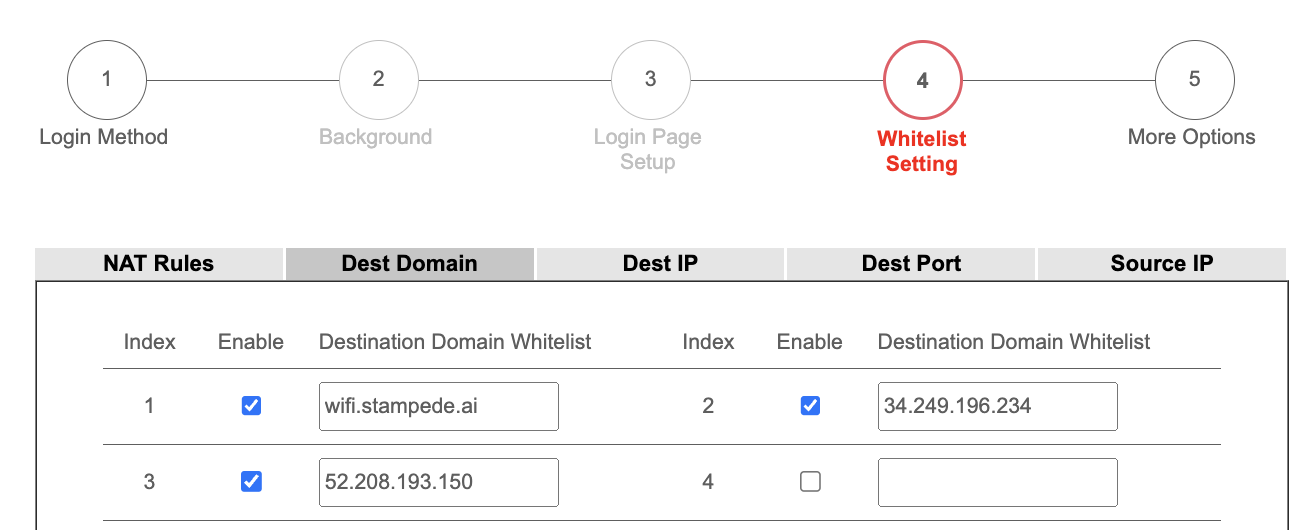

Next, head to the Hotspot Web Portal Profile Setup Whitelist Setting section. Under ,Dest Domain, add the following domains:
wifi.stampede.ai
34.249.196.234
52.208.193.150
-

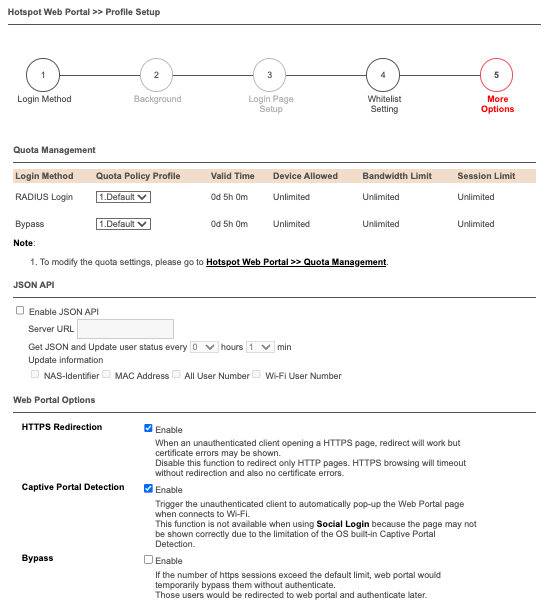

Finally, go to the Web Portal Profile Setup More Options section. Apply here:
HTTPS Redirection: enabled
Captive Portal Detection: enable
Landing Page After Authentication: Fixed URL:

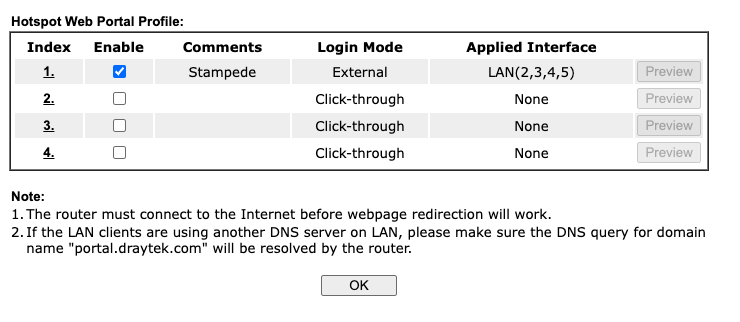

http://wifi.stampede.ai/*serial*/landingFinally, apply these settings to the subnet or SSID you'd like to broadcast our service from.
