This setup guide explains how to connect your TP-Link Omada controller to the Stampede captive portal. These instructions are intended as general guidance only. Network environments vary, and certain steps may differ depending on your specific hardware model, firmware version, or controller configuration.
For this reason, we strongly recommend the following:
- Consult your IT provider or network engineer before making any changes to your network settings.
- Refer to TP-Link Omada’s official documentation for the most accurate and up-to-date instructions for your controller and access points.
Use this guide as a reference alongside the resources provided by TP-Link.
If you need help accessing your Stampede account or completing the Stampede-specific steps, please contact support@stampede.ai and our team will be happy to assist.
If you are unable to access Stampede, please contact support@stampede.ai or coordinate with your designated admin to get access.
Go to Stampede
Set-up integration on Stampede

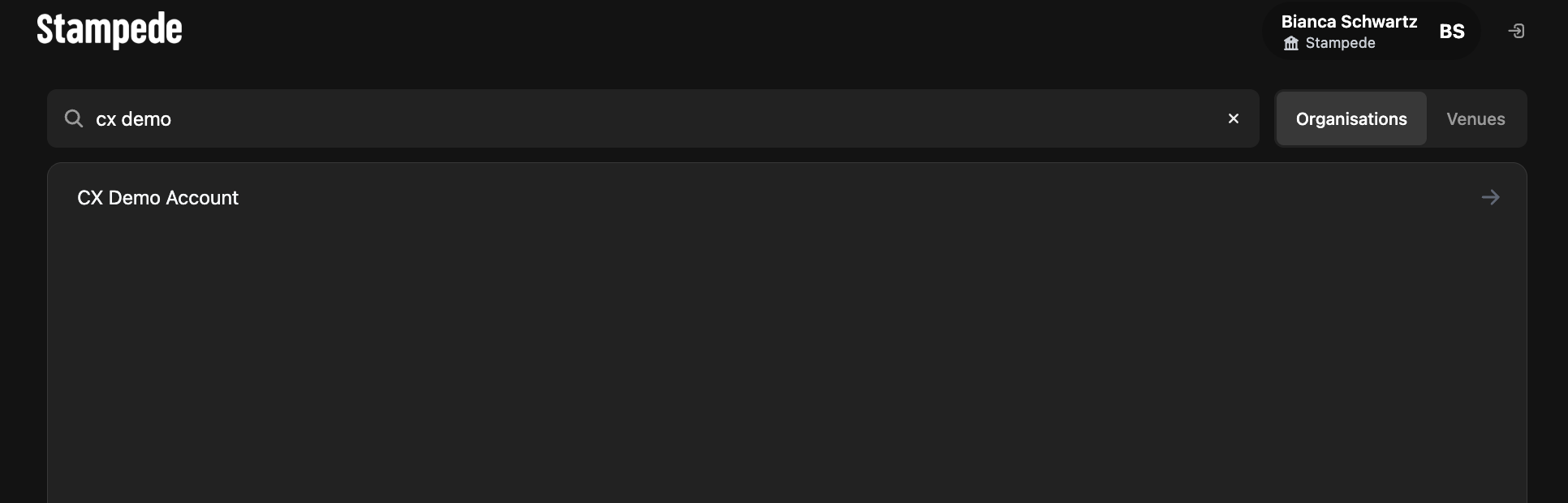

- Log into Stampede at product.stampede.ai.
-

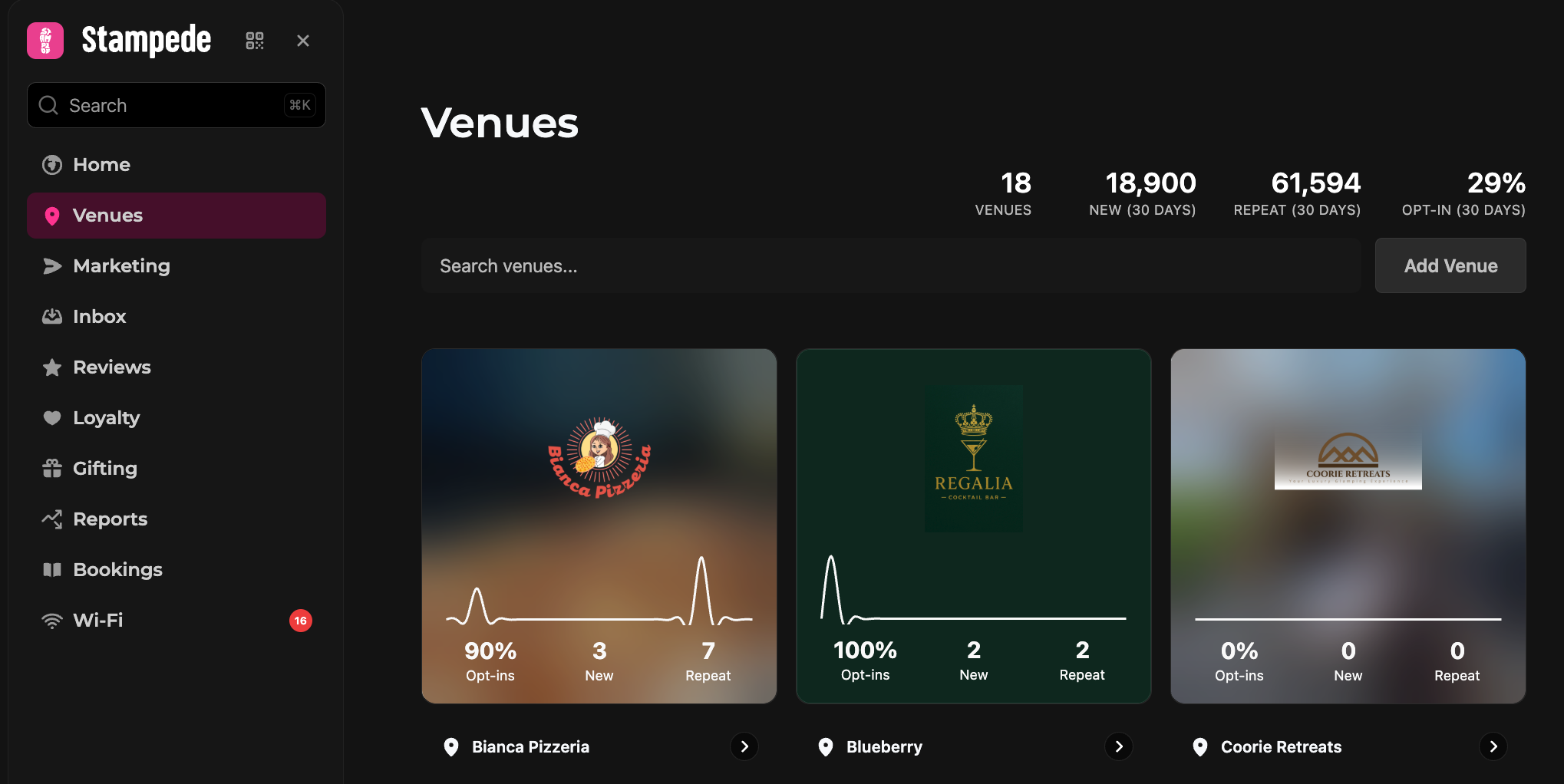

Go to Venues and select the venue you wish to configure.
-
Scroll down and selected Wi-Fi icon.
-

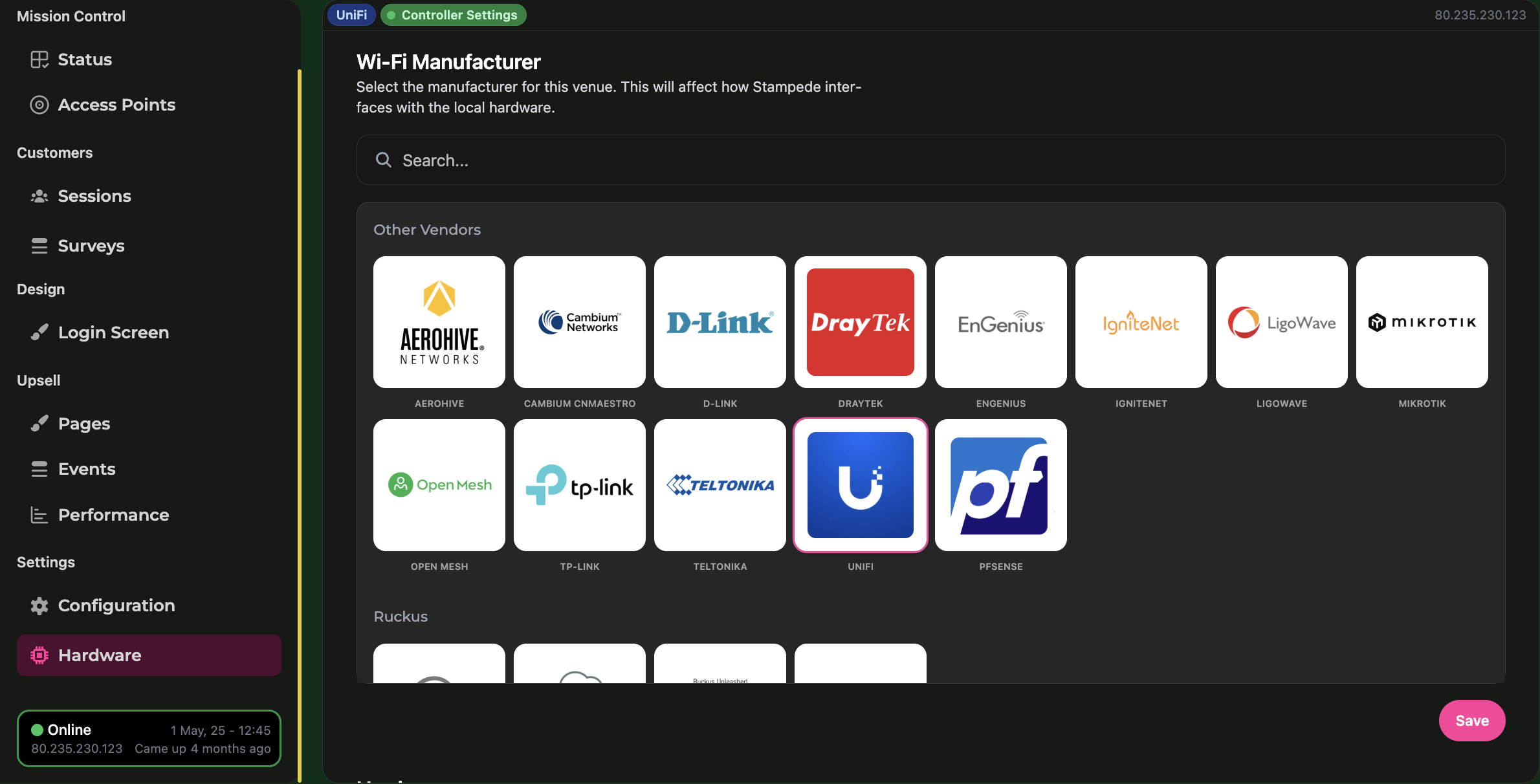

Scroll down to Hardware and select hardware in the "Other Vendors" option
Once you have changed the Vendor type to TP-link, note the External Portal URL, this will be used later.
Go to Omada controller
Sign into your Omada controller and select the site (top-right) where you want to apply the Stampede integration.
Go to Settings → Authentication → RADIUS Profile, then click Create New RADIUS Profile. (example below)
-
Go to Authentication → Portal, click Create New Portal and add in:
Portal Customisation: External Web Portal –
https://wifi.stampede.ai/*SERIAL*(see Stampede Configuration Step)Click Apply.
-
Still in Authentication → Portal, go to Access Control at the top of the page. Enable Pre-Authentication Access and add the following URLs (via IP Range → URL):
wifi.stampede.ai
appleid.apple.com
appleid.cdn-apple.com
Click Save and then Apply.
You should now be connected, any issues please connect with your IT team.
